1,745.00€ excl. VAT
For surveying, cartography and navigation with centimetric precision. Comes with a mobile application.
IP 67 standard
Totally dust and waterproof to a depth of 1 metre for 30 min.
GNSS
GPS/QZSS L1/L2C, GLONASS L1/L2, BeiDou B1/B2, Galileo E1/E5b
Long range radio
LoRa 868/915 MHz, range up to 8 km
16 hours as RTK mobile
LiFePO4 battery, 6-40V input, USB charging
Wi-Fi and Bluetooth
For connection to other devices

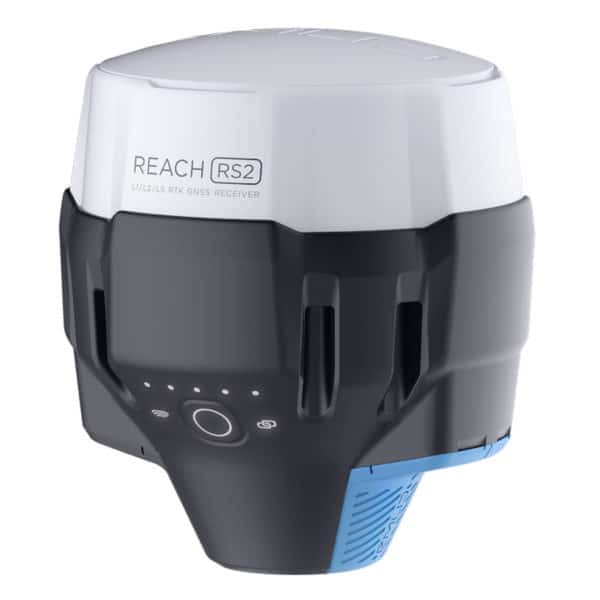

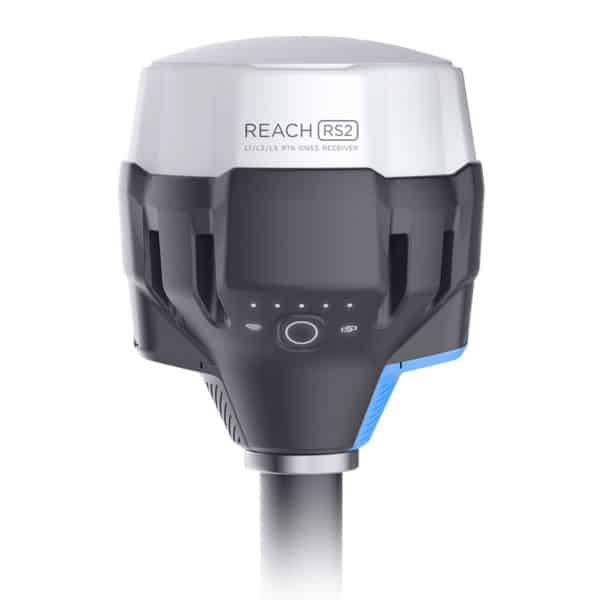

The Reach RS2 is a multi-frequency RTK receiver with a high price/performance ratio.
It tracks the GPS/QZSS L1/L2C, GLONASS L1/L2, GALILEO E1/E5b, and BEIDOU B1/B2 constellations.
The Reach RS2 can operate in RTK on baselines of up to 60km, and up to 100km in PPK. The integrated antenna, with its multi-path filter, offers an appreciable robustness even in difficult environments.
The Reach RS2 has many features: point collection, location, RTK base mode, raw data logging. RINEX logs are compatible with RinexLab, our PPK calculation interface, so you can get centimetric coordinates in post-processing anywhere in the world. In RTK, corrections can be obtained via NTRIP by inserting a SIM card into the built-in 3.5G modem, so you don’t need to use data from your smartphone. In white areas, corrections can be transmitted and received within a radius of 8km by radio using the LoRa antenna supplied.

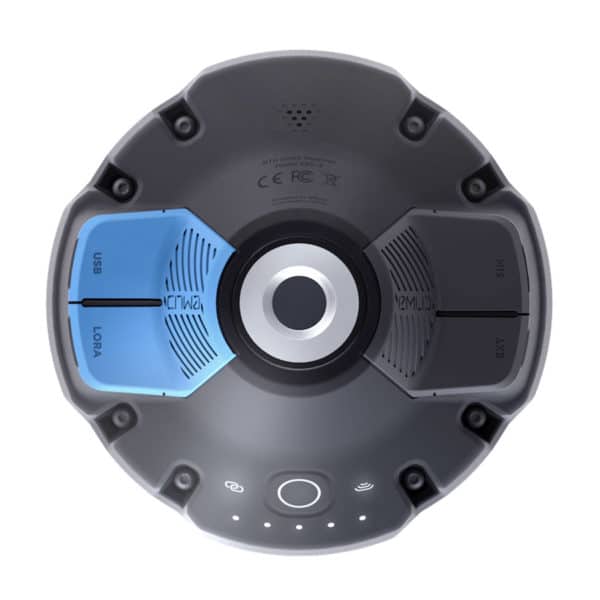

The Reach RS2 is designed to be waterproof and impact resistant. Its impact resistant polycarbonate shell is covered with a special elastomer for extra protection. The receiver has a 5/8” screw thread in accordance with industry standards. The Reach RS2’s LiFePO4 battery has a charge designed for 16 hours of RTK operation and 22 hours of logging. Charging of the receiver is via a wall-mounted USB charger or via USB-C.
The various output streams, RS-232, Bluetooth, WiFi, allow the Reach RS2 to be connected to external equipment and to broadcast a position frame in NMEA format.

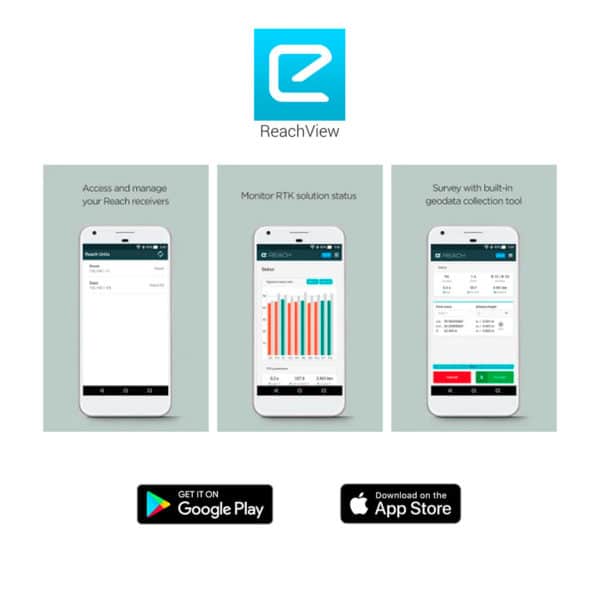

The Reach RS2 comes with the free iOS/Android ReachView application, which allows you to control all the device’s functionalities: create projects, collect and implement points, import and export geographic data in standard formats such as CSV, DXF, ShapeFile…
Do you have any questions? Write to us or consult the Frequently Asked Questions.
Weight | 950 g |
---|---|
Dimensions | 126 × 126 × 142 mm |
